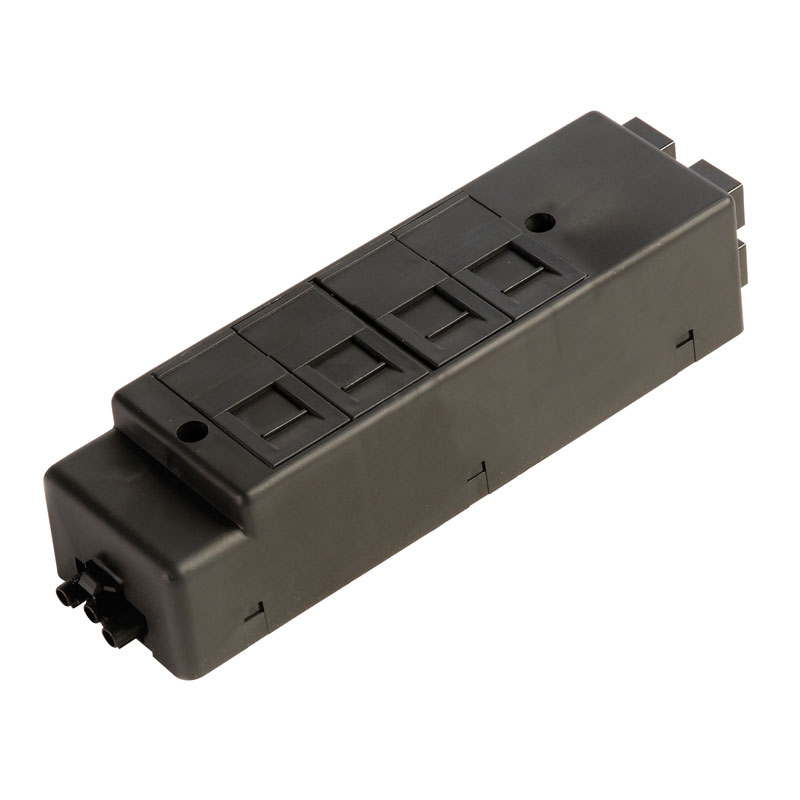

4 x RJ45 CAT5E 3m (PMKDH43)

4 x RJ45 CAT5E 3m (PMKDH43)

Data Modules come complete with 3m leads. Modules can also be connected directly to Under Desk Power Modules. With specific regard to the electrical system the following should be noted:

• No more than six sockets allowed per supply
• The electrical system shall be rated for a total normal load of 13A
• No single item of equipment of a rated voltage higher than 250V or rated current higher than 5A shall be connected to the furniture
• For multiple socket outlets fuse protection must be used for the individual sockets
• Observe the stated fuse ratings on the appliance
• Power supply cords must not exceed 2M in visible length on exit from the desk clamp
• Ensure cable routing, system earthing and general mechanical configuration conforms to the stated requirements
• The final installation must be subjected to an electrical test. (Separate information is available regarding this)
• Cable must be clamped at point of entry to furniture and/or at both ends where cables connect separate moving parts of furniture
• All extraneous metalwork should be earthed
• Items of Office Furniture intended to be earthed shall be provided with an earthing terminal that shall be connected to the earth terminal of the Power Module
• Provide the user with instructions concerning the safe installation and use of the furniture

Any item of equipment rated in excess of 5 Amp, MUST have a separate power supply, therefore items such as Vacuum Cleaners Kettles, Coffee Makers, and Fan Heaters should not be connected via these power modules
