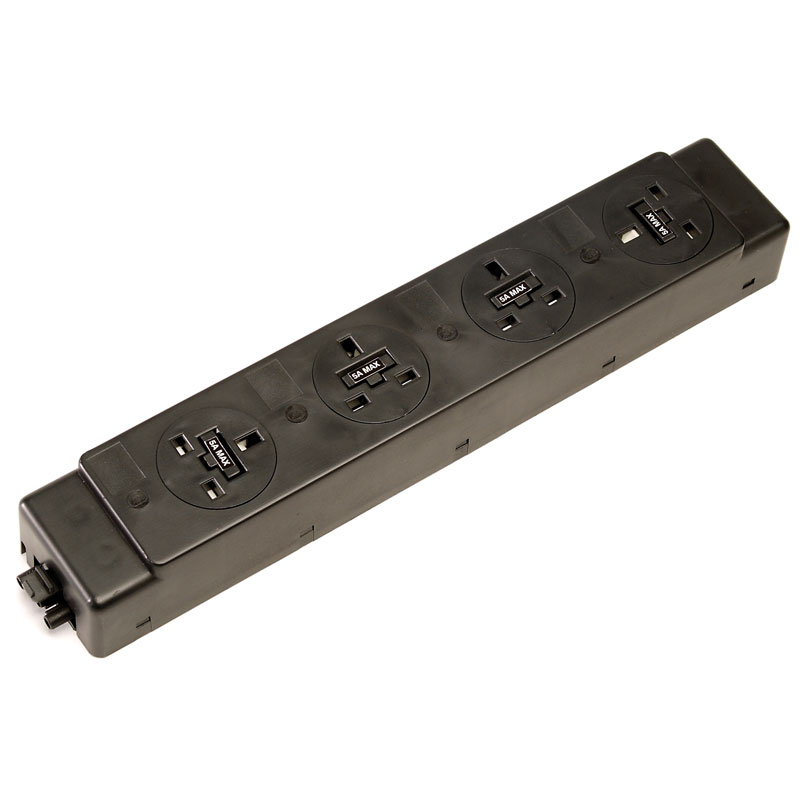

Under Desk Power Module -
4 Sockets (PMK405E)

Under Desk Power Module -
4 Sockets (PMK405E)

All power modules supplied feature a unique spare fuse incorporated into each and every socket. With specific regard to the electrical system the following should be noted:

• No more than six sockets allowed per supply
• The electrical system shall be rated for a total normal load of 13A
• No single item of equipment of a rated voltage higher than 250V or rated current higher than 5A shall be connected to the furniture
• For multiple socket outlets fuse protection must be used for the individual sockets
• Observe the stated fuse ratings on the appliance
• Power supply cords must not exceed 2M in visible length on exit from the desk clamp
• Ensure cable routing, system earthing and general mechanical configuration conforms to the stated requirements
• The final installation must be subjected to an electrical test. (Separate information is available regarding this)
• Cable must be clamped at point of entry to furniture and/or at both ends where cables connect separate moving parts of furniture
• All extraneous metalwork should be earthed
• Items of Office Furniture intended to be earthed shall be provided with an earthing terminal that shall be connected to the earth terminal of the Power Module
• Provide the user with instructions concerning the safe installation and use of the furniture

Any item of equipment rated in excess of 5 Amp, MUST have a separate power supply, therefore items such as Vacuum Cleaners Kettles, Coffee Makers, and Fan Heaters should not be connected via these power modules
